Decentralized and Coordinated V-f Control for Islanded Microgrids
The Problem
Insufficient distributed energy resources (DERs) create challenges to islanded microgrids that are unsupported by a main utility grid. These challenges include improper load sharing, DC side instability, and large voltage and frequency (V-f) deviation, which can lead to unnecessary load shedding.
The Solution

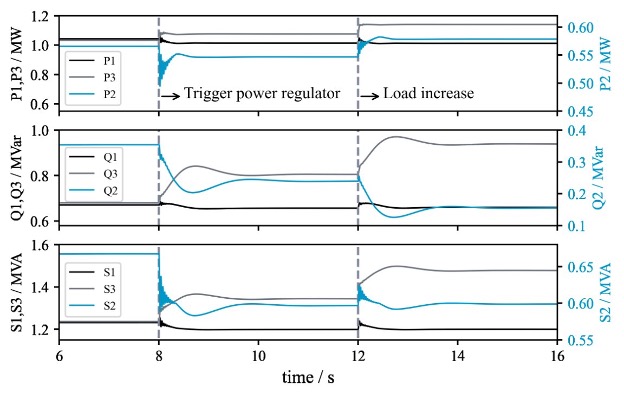

Researchers at the University of Tennessee, Oklahoma State University and Missouri S&T have developed a decentralized control method for coordinating output of grid-forming (GFM) inverters and controlling load demand in islanded microgrids under insufficient DER supply. This control framework is composed of a power and V-f regulator that generates supplementary signals for the primary controller. A power regulator controls the output of grid-forming inverters according to the real-time capacity constraints of DERs, while the V-f regulator improves V-f deviation by leveraging load sensitivity.
Benefits
| Benefit |
|---|
| Quickly and accurately regulates output of each GFM inverter according to real-time capacity constraints without requiring knowledge of other inverters |
| Improves V-f deviation of the microgrid |
| Reduces involuntary load shedding |
More Information
- Gregory Sechrist, JD
- Technology Manager, Multi Campus Office
- 865-974-1882 | gsechris@tennessee.edu
- UTRF Reference ID: 22154
- Patent Status:
